Over And Under Voltage Protector

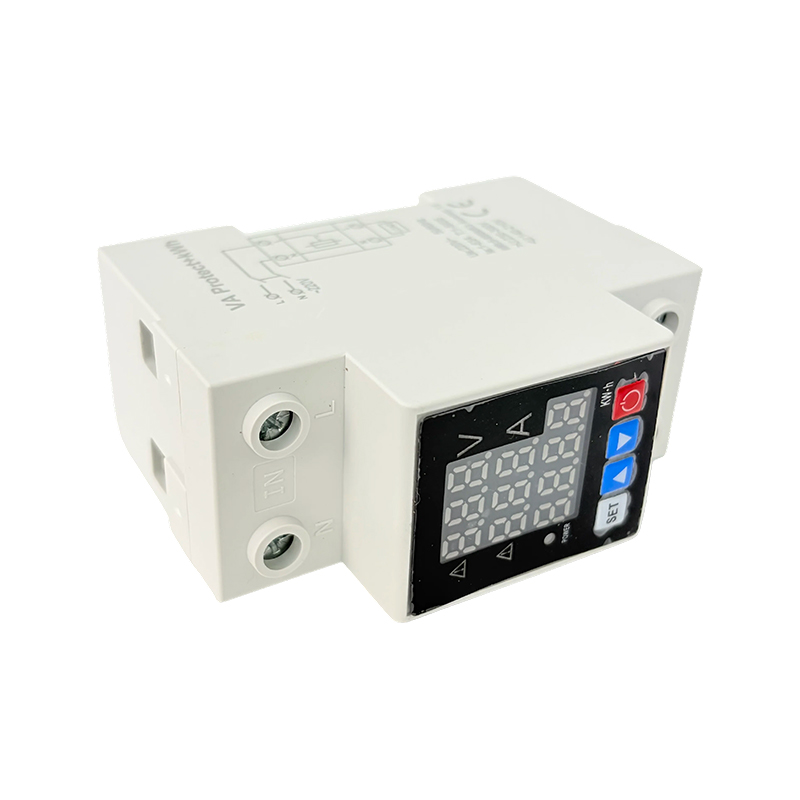

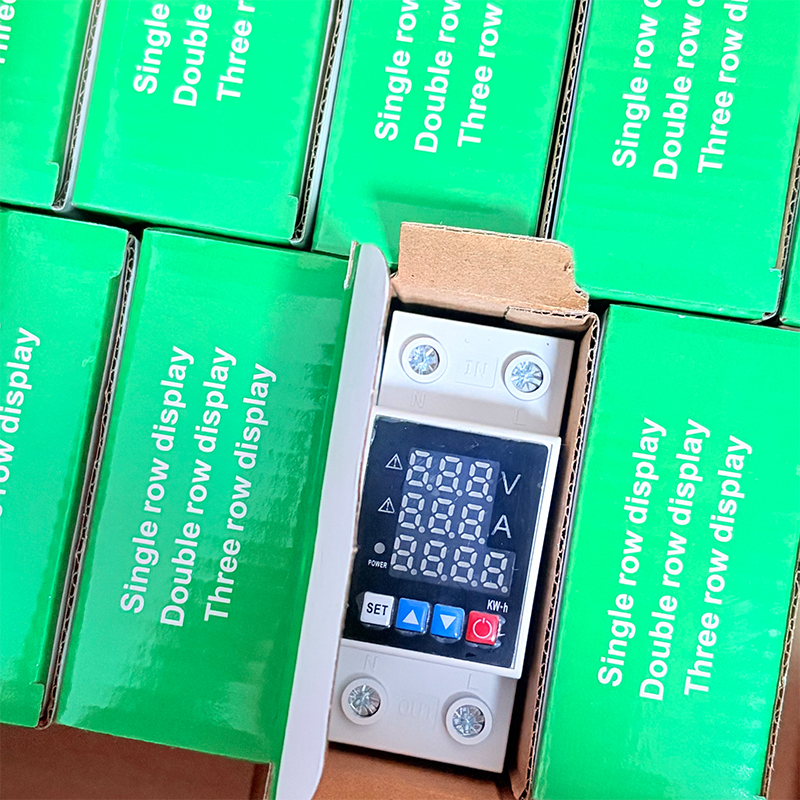

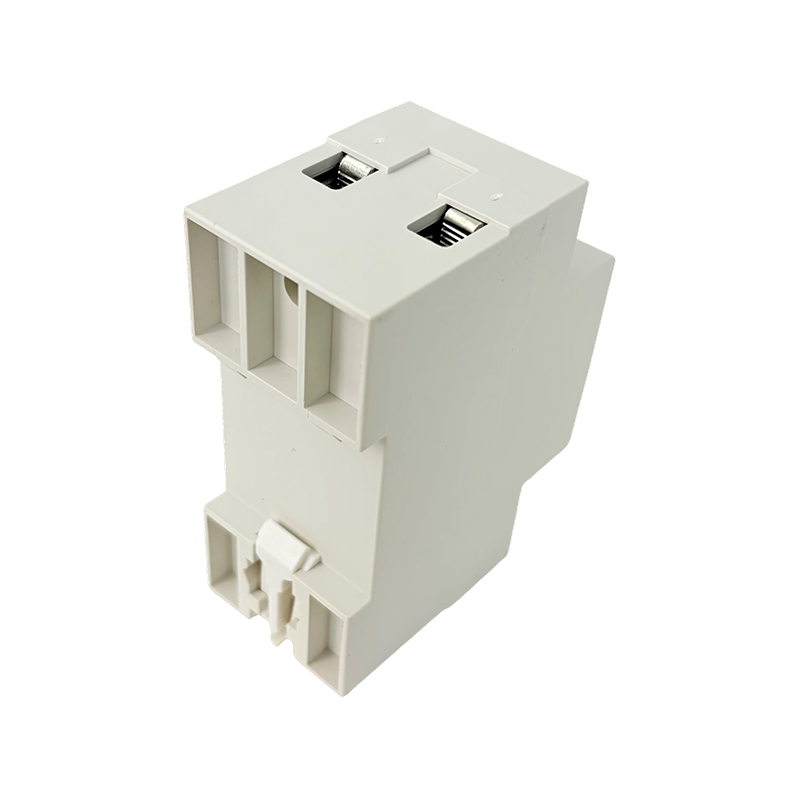

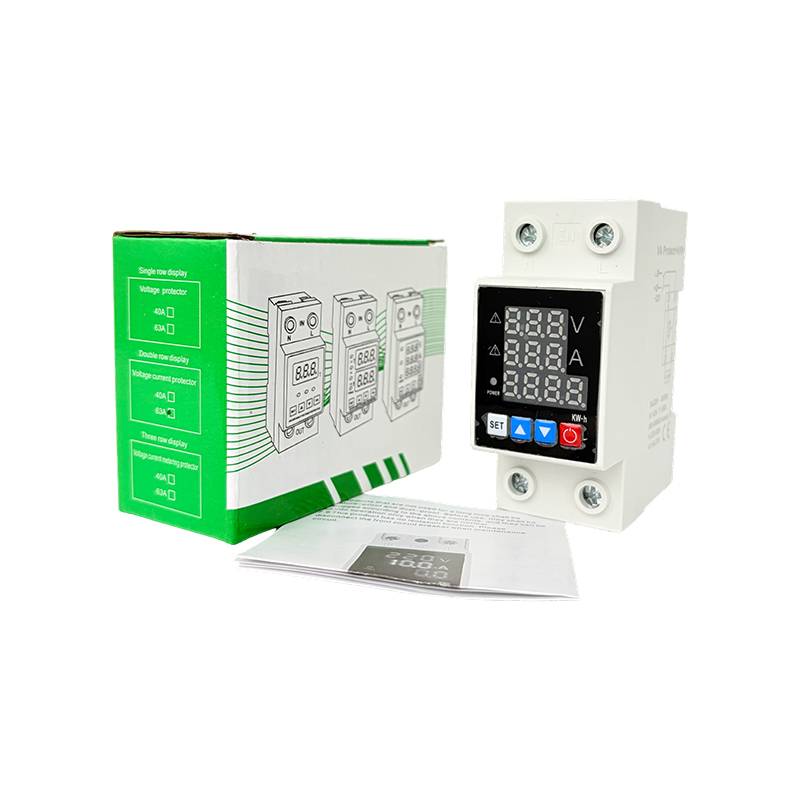

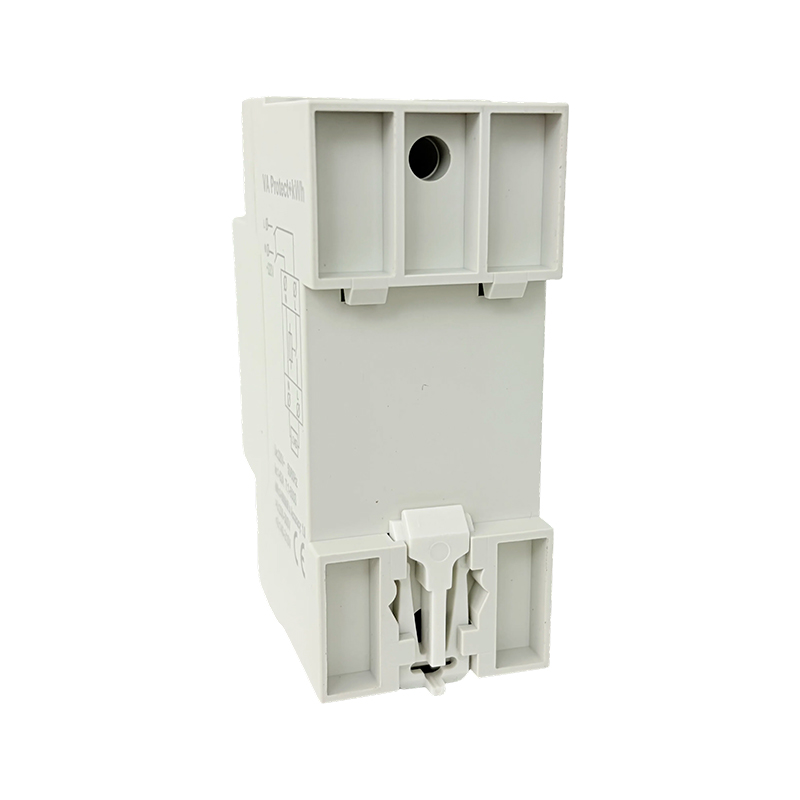

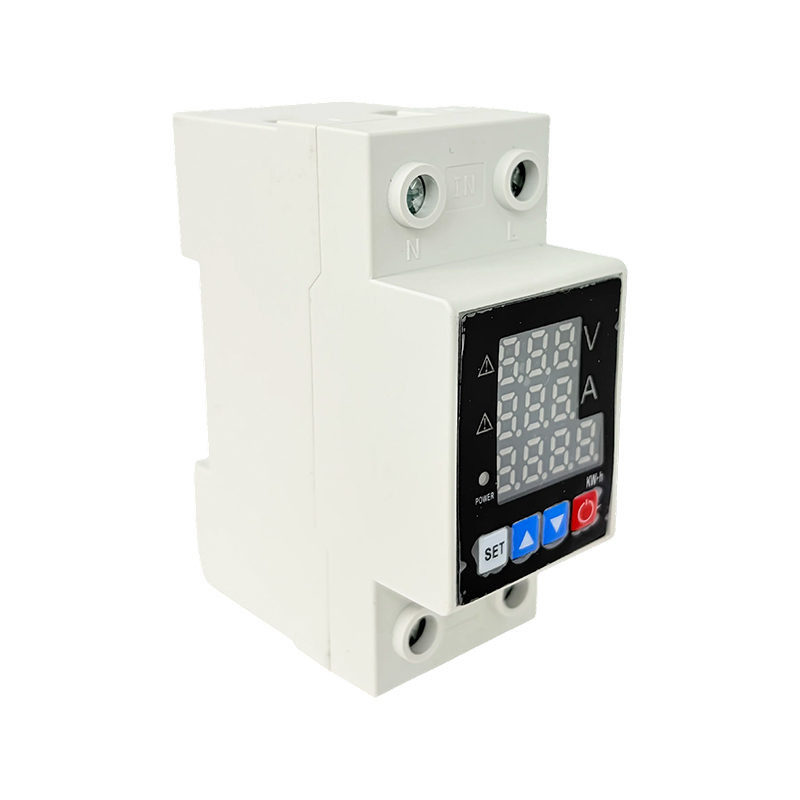

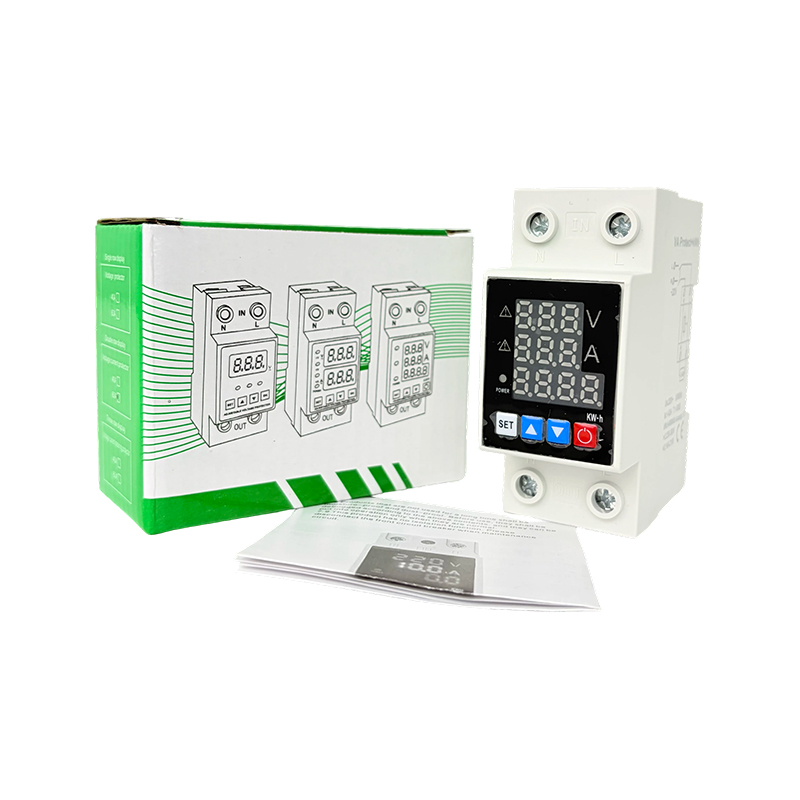

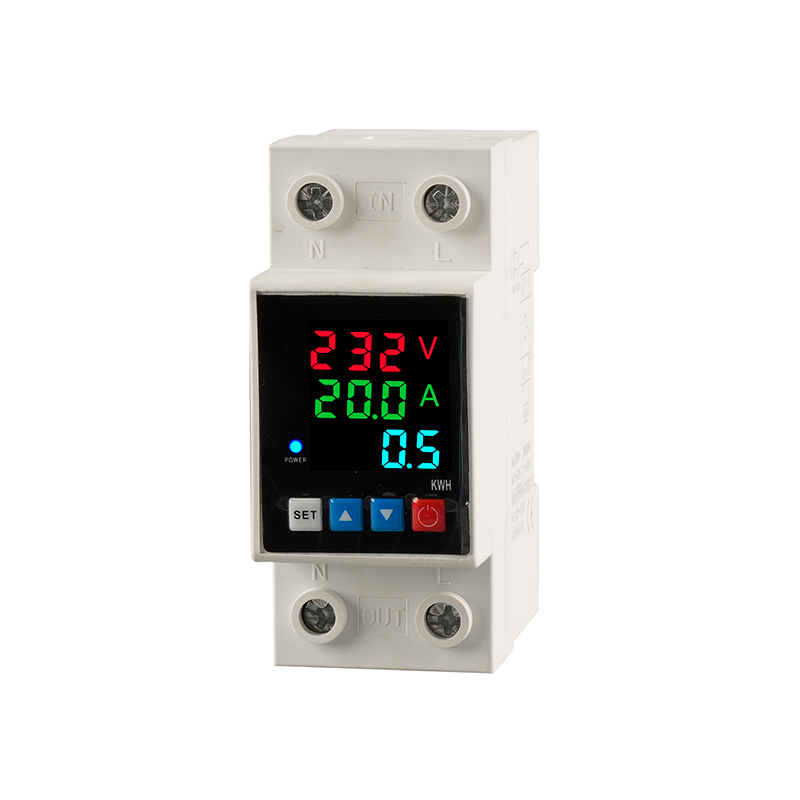

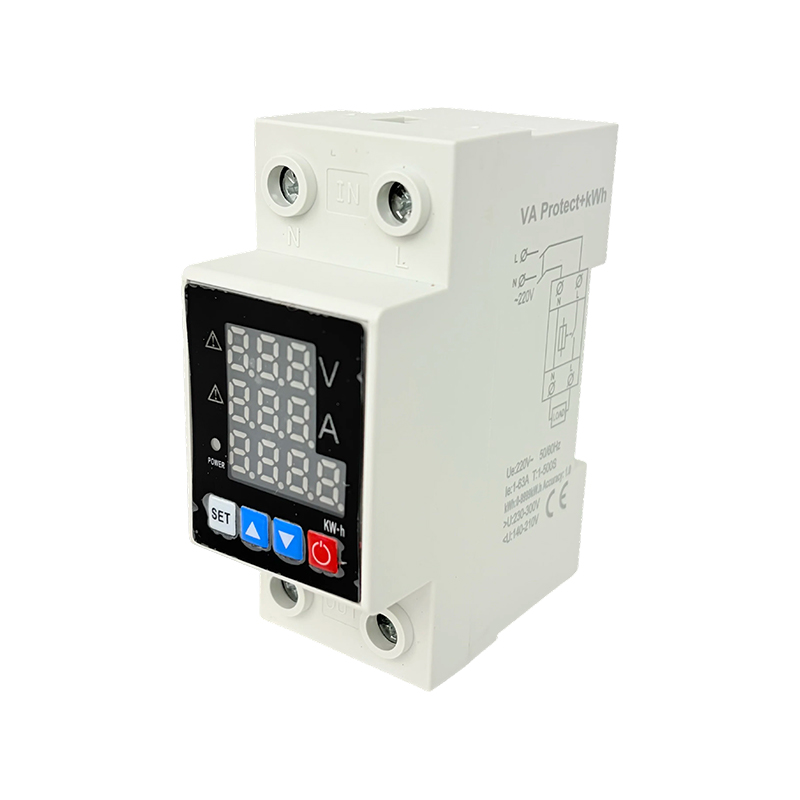

Triple-row Display Overvoltage and Undervoltage Protector DIN Rail Mounted

Product Introduction

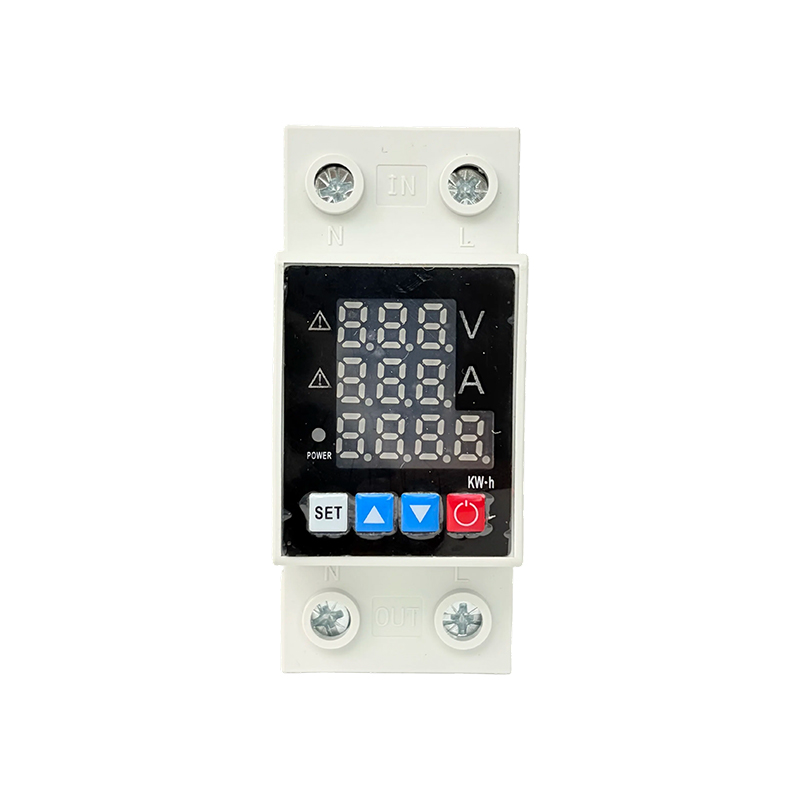

This self-recovery overvoltage and undervoltage protector is designed for installation in standard distribution boxes with 35mm DIN rail mounting. It features a triple digital display to monitor real-time voltage, current, and power consumption, providing enhanced electrical parameter visibility for energy management and system protection.

The device supports configurable overvoltage, undervoltage, overcurrent, and power protection settings. When abnormal voltage, current, or load conditions occur, it automatically disconnects the circuit to protect connected electrical equipment. Once the power supply returns to normal, the device will automatically restore power after a preset delay, without requiring manual reset.

Available in multiple current ratings from 15A to 63A, it offers high measurement accuracy, wide operating temperature adaptability, and stable performance for electrical protection and energy monitoring applications.

Application Scenarios

1. Residential buildings, apartments, and home distribution systems
2. Offices, retail stores, restaurants, and commercial facilities
3. Rural areas and construction sites with unstable voltage supply
4. Solar power systems, energy monitoring systems, and industrial control cabinets
5. Street lighting systems, warehouses, and terminal electrical equipment

Get A Quote
  • Product Details
  • About ChengXi
  • Contact Us
Rated supply voltage AC220V Operating voltage range AC80V~400V
( single-phase)
Rated frequency 50/60Hz Current (>A) setting range 1-40/63A/OFF
Overvoltage(>U)setting Range 230-300V/OFF Under voltage (<U) setting range 210-140V/OFF
Rated Current 40/63A
( subject to product label)
Voltage measurement accuracy 2%(Not exceeding 2% of the overall range)
ResetStartDelay 1~600S Output contact 1NO
Rated Insulation Voltage 400V Mechanical life 10⁶
Electrical life 10⁵ Pollution Degree 3
Protection Degree IP20 Operating temperature -50℃ ~55℃
Altitude ≤ 2000m Storage temperature -30℃ ~70℃
Humidity ≤ 50% at 40℃
(without condensation)
kWh protection value 1-9999/OFF
>U and<U trip delay 0.5s

Technical Parameter Setting range Step Factory Setting
Overvoltage protection value AC230V-300V/OFF 1V AC280V
Undervoltage protection value AC210V-140V/OFF 1V AC160V
 Recovery delay time 1s-600s 1s 5s
Overcurrent protection value 1-40/63A/OFF 0.1A 63A
Continuous overcurrent protection frequency 1-20/OFF 1 OFF
kWh protection value 1-9999/OFF 1 300
Current regulations 15A 25A 32A 50A 63A
Rated working current (In, A) 15 25 32 50 63
Maximum operating current Imax (A, within 10 minutes) 25 30 40 60 80
Maximum load power (KW) 3.6 5.5 7 11 13.9
