Over And Under Voltage Protector

Dual-row Display Overvoltage and Undervoltage Protector DIN Rail

Product Introduction

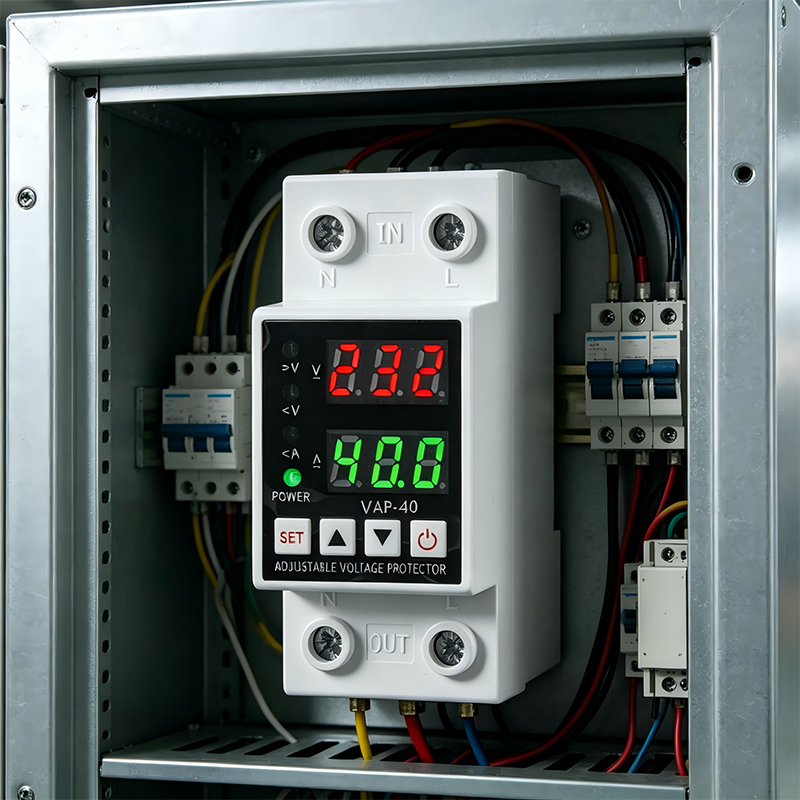

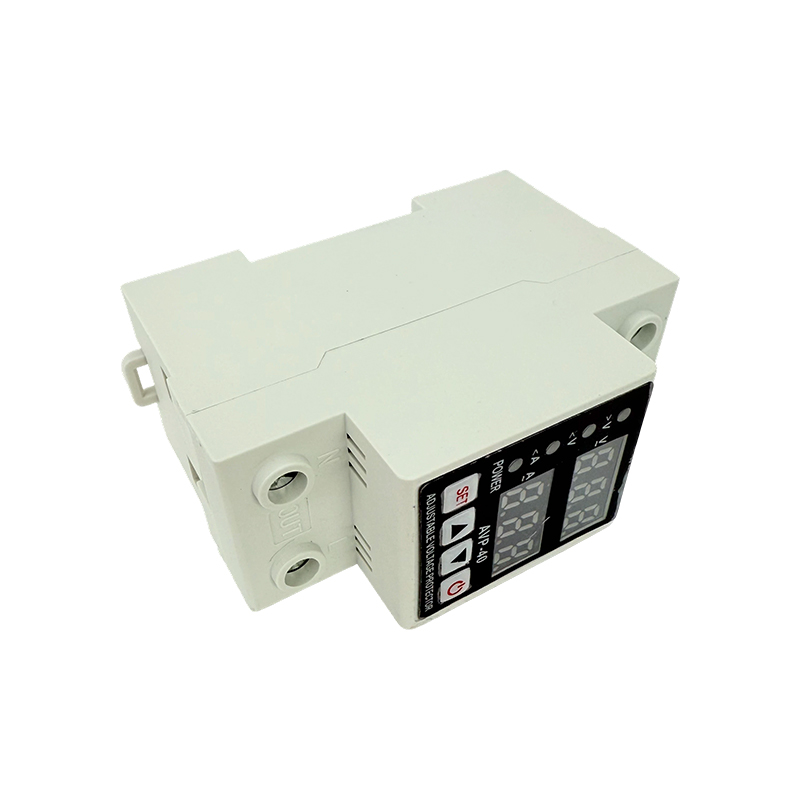

This self-recovery overvoltage and undervoltage protector is designed for installation in standard distribution boxes with 35mm DIN rail mounting. It features a dual digital display to monitor real-time voltage and current, providing basic electrical parameter monitoring for circuit protection applications.

The device supports adjustable overvoltage, undervoltage, and overcurrent protection parameters. When abnormal voltage or overload occurs, it automatically cuts off the power supply to protect electrical equipment from damage. Once the grid returns to normal, it will automatically restore power after a preset delay, without manual reset.

With high measurement accuracy, a wide operating temperature range, and multiple current ratings from 15A to 63A, it is suitable for stable and safe power management in residential and commercial electrical systems.

Application Scenarios

1. Residential buildings, rental houses, and family distribution systems
2. Offices, shops, restaurants, and other commercial premises
3. Rural areas and temporary construction power supply with unstable voltage
4. Solar power systems, monitoring equipment, and small industrial control cabinets
5. Warehouses, street lighting control boxes, and various terminal electrical equipment

Get A Quote
  • Product Details
  • About ChengXi
  • Contact Us

Rated supply voltage AC220V Operation voltage range AC80V~400V
( single-phase)

Rated frequency
50/60Hz Current (>A) setting range 1-40/63A

Overvoltage(>U)setting Range
230-300V Under voltage (<U) setting range 210-140V

Rated Current
40/63A
( subject to product label)
Voltage measurement accuracy 2%( Not exceeding 2% of the overall range)
ResetStartDelay 1~600S Output contact 1NO
Rated Insulation Voltage 400V Mechanical life 10⁶
Electrical life 10⁵ Pollution Degree 3
Protection Degree IP20 Operating temperature -50℃ ~55℃
Altitude ≤ 2000m Storage temperature -30℃ ~70℃
Humidity ≤ 50% at 40℃ ( without condensation) >U and0.5s
Technical Parameter Setting range Step Factory Setting
Power on delay time 1-300s 1s 5s
Overvoltage protection value 230V-300V 1V 280V
Undervoltage protection value 210V-140V 1V 160V
Voltage protection action time 0.1-30s 0.1s 1s
Overcurrent protection value 1-40/63A/OFF 0.1A 40/63A
Overcurrent protection action time 0.1-30s 0.1s 1s
Continuous overcurrent protection frequency A01~A20/OFF A01 OFF
Recovery delay time 1-600s 1s 5s
Current regulations 15A 25A 32A 40A 50A 63A
Rated working current (In, A) 15 25 32 40 50 63
Maximum operating current Imax
(A, within 10 minutes)
25 30 40 50 60 80
Maximum load power (KW) 3.6 5.5 7 8.8 11 13.9
