Molded Case Circuit Breaker (MCCB)

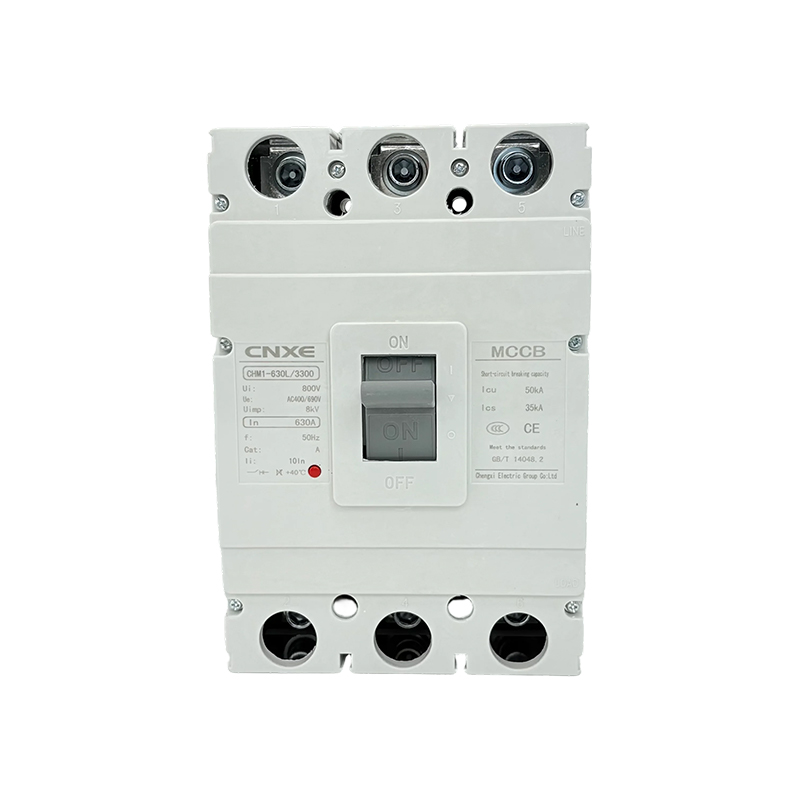

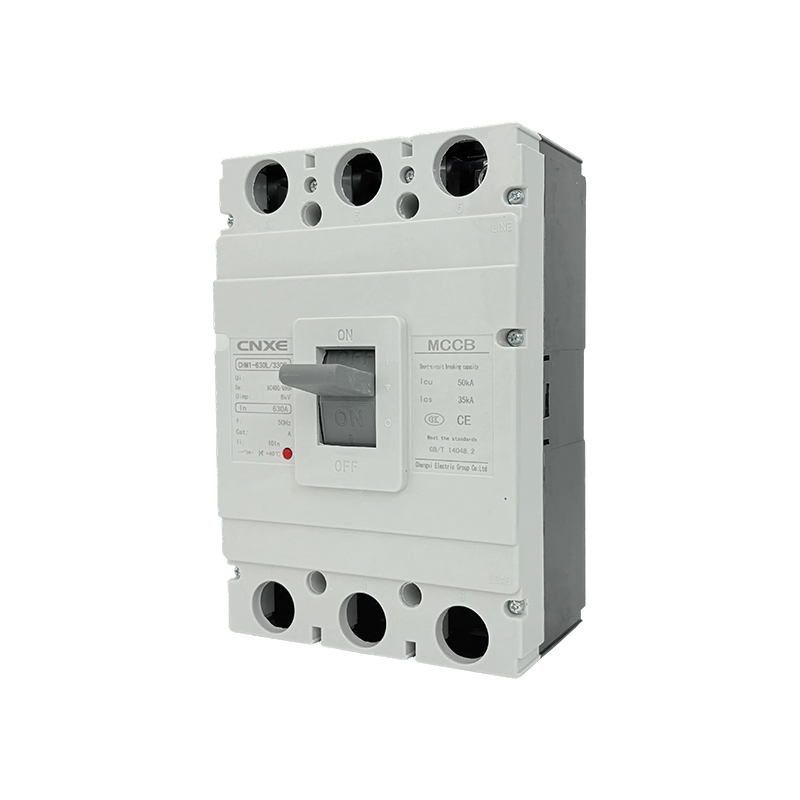

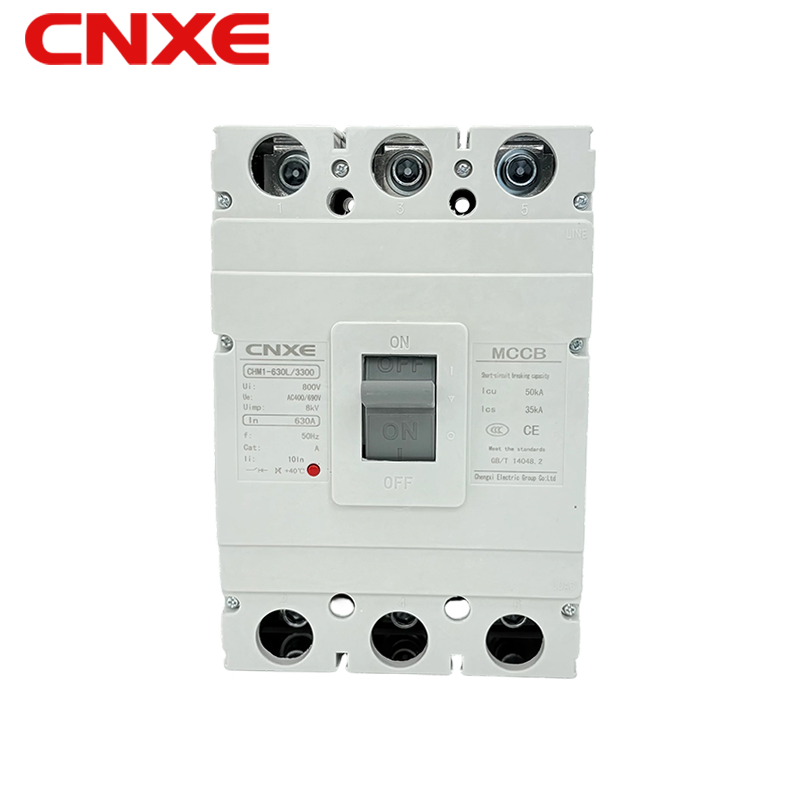

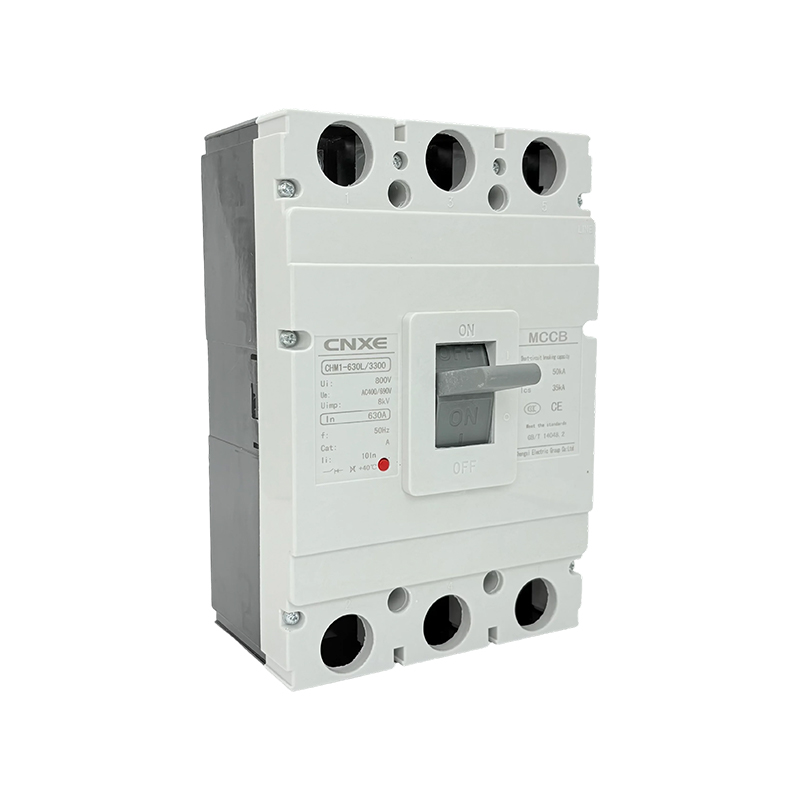

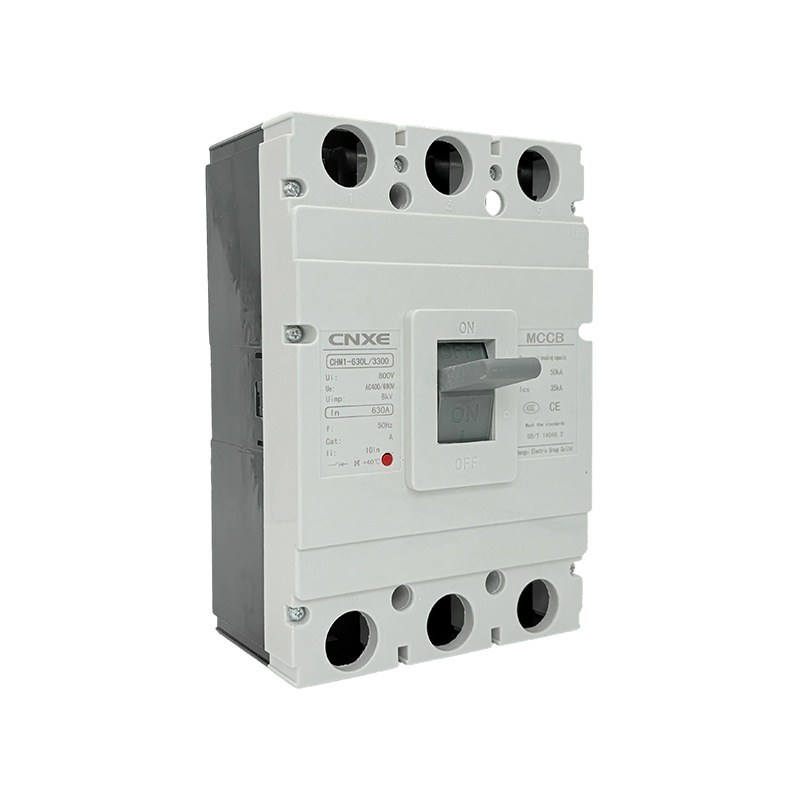

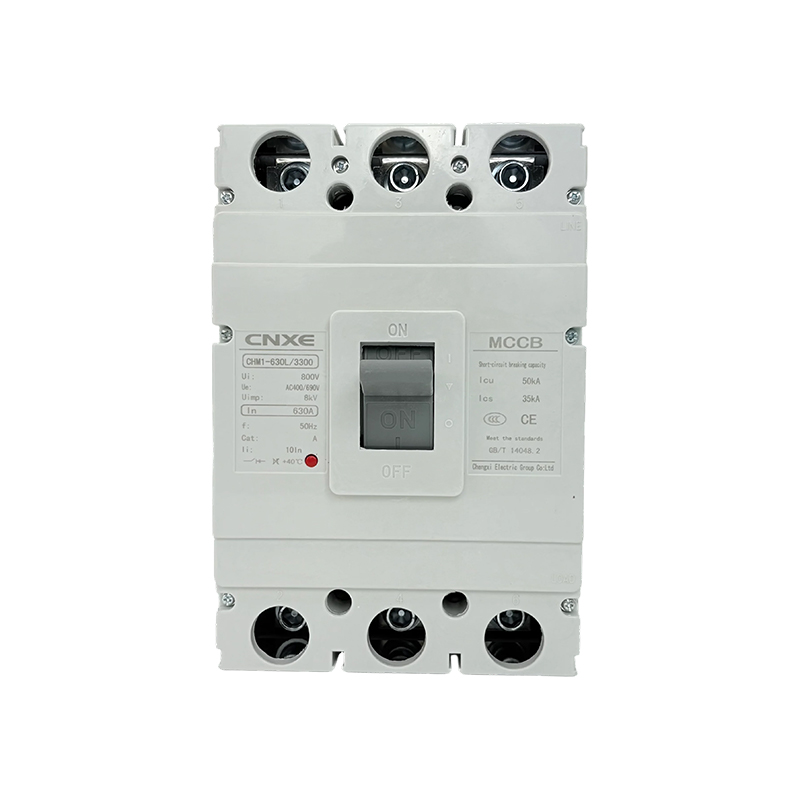

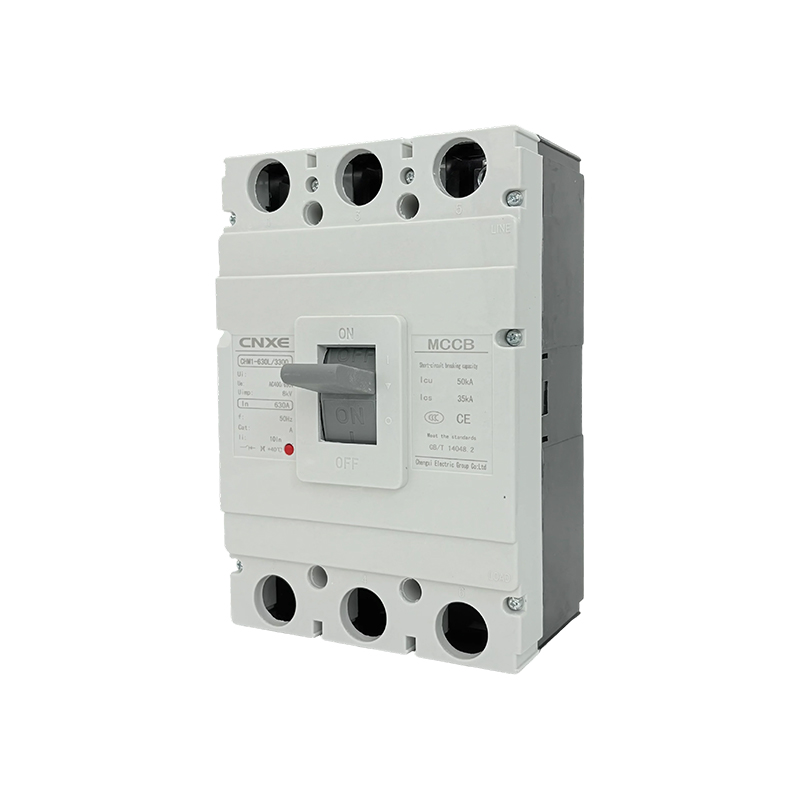

630A 3P with CE Molded Case Circuit Breaker (MCCB)

The CHM1 series 3P plastic case circuit breaker, with a wide current range of 10A-1600A and a breaking capacity of up to 100kA, faces the harsh power challenges. We are not only a provider of standard products, but also your reliable backing, supporting deep customization and matching precise protection solutions for your system.
The CHM1 Series 3P Plastic Case Circuit Breaker is specifically designed to withstand harsh power conditions and demanding industrial environments. Covering a wide current range from 10A to 1600A and offering a breaking capacity of up to 100kA, it provides reliable protection against overloads, short circuits, and electrical faults. More than just a standard product, we position ourselves as your trusted partner, delivering deep customization services to match voltage, current, and breaking capacity requirements precisely. This flexibility ensures your electrical system operates safely and efficiently under even the most challenging conditions.

High-Capacity CE Certified MCCB

The 630A 3P Molded Case Circuit Breaker (MCCB) is CE certified, guaranteeing high-quality performance and adherence to international safety standards. Designed for industrial and commercial power distribution, it provides robust overload and short-circuit protection, ensuring your system’s stability and operational reliability. Combining advanced design with durable construction, this MCCB is ideal for professionals seeking flexible, dependable, and fully customizable electrical protection solutions. Together with the CHM1 series, it forms a comprehensive solution for modern power systems, offering safety, reliability, and performance in one package.

Get A Quote
  • Product Details
  • About ChengXi
  • Contact Us


Product Name Model specification Rated current
Molded Case Circuit Breaker (MCCB) CHM1-63L/3300 10、16、20、25、32、40、50、63
CHM1-63M/3300
CHM1-63M/4300A
CHM1-63M/4300B
CHM1-125L/3300 16A、20A、25A、32A、40A、50A、63A、80A、100A、125A
CHM1-125L/4300A
CHM1-125L/4300B
CHM1-125M/3300
CHM1-125M/4300A
CHM1-125M/4300B
CHM1-250L/3300 125A、140A、160A、180A、200A、225A、250A
CHM1-250L/4300A
CHM1-250L/4300B
CHM1-250M/3300
CHM1-250M/4300A
CHM1-250M/4300B
CHM1-400/3300 225A、250A、315A、350A、400A
CHM1-400/4300A
CHM1-400/4300B
CHM1-630/3300 400A、500A、630A
CHM1-630/4300A
CHM1-630/4300B
CHM1-800/3300 630A、700A、800A
CHM1-800/4300A
CHM1-800/4300B
CHM1-1250/3300 1000A、1250A
CHM1-1250/4300A
CHM1-1250/4300B
CHM1-1600/3300 1250A、1600A
CHM1-1600/4300A
CHM1-1600/4300B
