MCCB Inspection: From Component Assembly to Final Quality Control

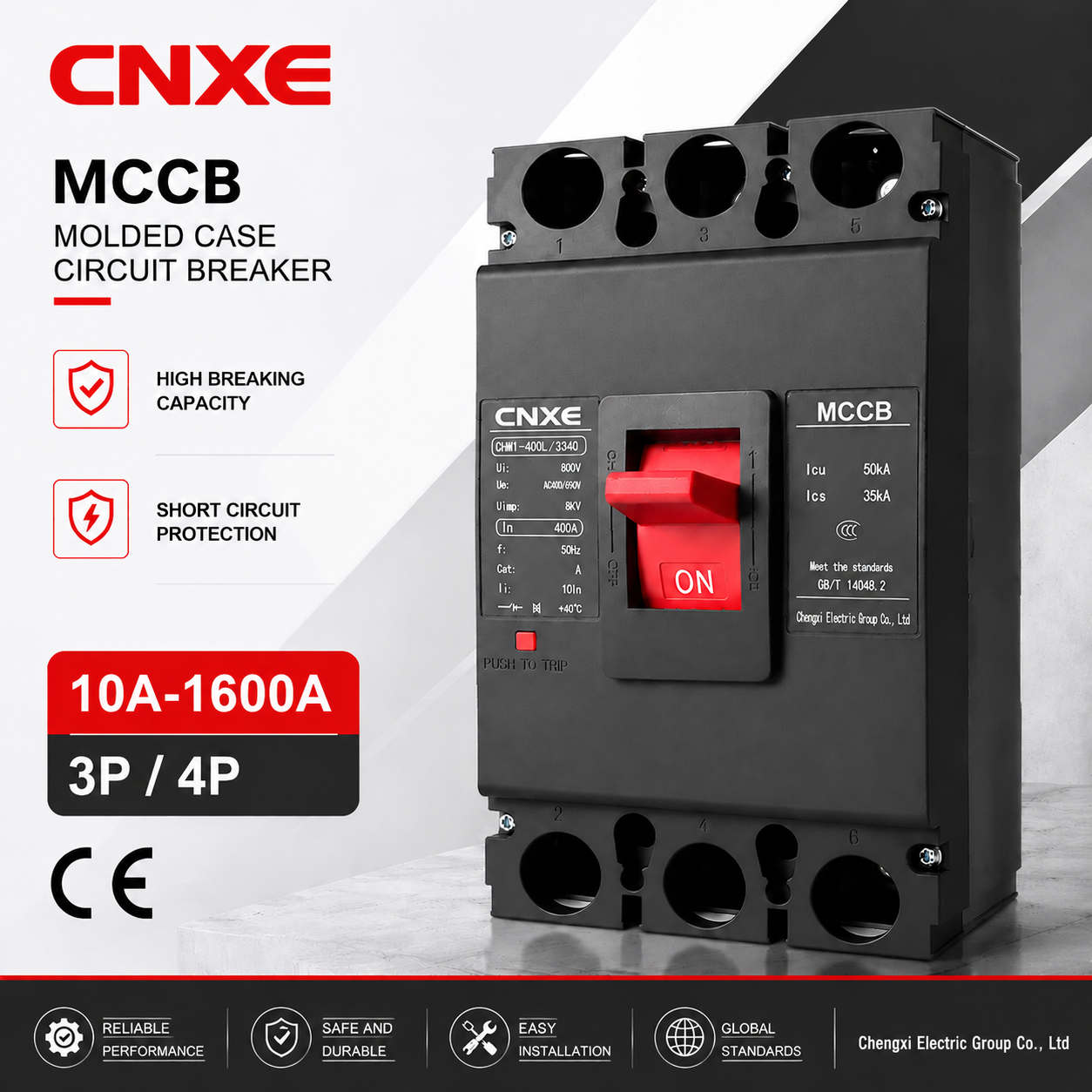

Molded Case Circuit Breaker (MCCB)is an important protection device in low-voltage distribution systems. Its manufacturing quality depends not only on the final test result but also on the accuracy of the components and the consistency of the assembly process.

At Chengxi Electric Co., Ltd., MCCB inspection is carried out as part of the manufacturing process to help ensure that products meet the required quality expectations before shipment. The following videos show different stages of this work, including product assembly and inspection.

Why MCCB Assembly Matters Before Inspection

An MCCB contains a molded case and internal operating and protection components. During assembly, these components must be positioned correctly and work together as intended. A problem with a component, connection, or assembly position may affect the product's operation or create difficulties during installation.

For this reason, MCCB assembly is an important part of manufacturing quality control. The assembly process provides an opportunity to check whether the product structure is complete and whether the relevant components have been installed according to the required configuration.

The video below shows our team carrying out MCCB assembly work. It provides a view of the manufacturing process before the product reaches the inspection stage.

What Does MCCB Inspection Focus On?

After assembly, MCCB inspection focuses on the condition of the finished product and details that may affect its use. The inspection shown in the video includes several important areas.

1. Product appearance and molded case condition

The molded case is an important part of the MCCB structure. Inspecting its surface and overall condition helps identify visible defects or abnormalities that may affect product quality.

2. Component assembly and structural consistency

The inspection also considers whether the relevant components are assembled correctly and whether the product structure remains consistent with the required design. This is particularly important when the same product is manufactured in different batches.

3. Product completeness

The team checks the overall condition of the assembled product to identify missing, incorrectly positioned, or visibly abnormal components. These checks help reduce the possibility of incomplete products moving to the next stage.

4. Quality consistency before shipment

Inspection is not limited to identifying individual defects. It also helps maintain consistent manufacturing quality across production batches, supporting more reliable installation and product handling for B2B customers.

How Assembly and Inspection Work Together

Assembly and inspection serve different purposes in the manufacturing process. MCCB assembly focuses on putting the product together correctly, while MCCB inspection focuses on checking the finished product and identifying potential quality issues.

Separating these two stages helps make the manufacturing process easier to control. Assembly provides the foundation for the finished product, and inspection provides an additional opportunity to verify its condition before shipment.

For buyers sourcing MCCBs, this distinction is important. A product that has been assembled correctly still needs appropriate inspection, while inspection results alone cannot replace proper manufacturing control.

Why Manufacturing Consistency Matters for B2B Buyers

For importers, distributors, and electrical equipment suppliers, product consistency is an important consideration when sourcing MCCBs. Different production batches should maintain the same required product structure and quality expectations.

A consistent manufacturing process helps suppliers manage product quality across repeated orders. It also supports more predictable product handling, installation, and quality assessment.

At ChengXi Electric Co., Ltd. the focus on assembly and inspection reflects the importance of controlling manufacturing details throughout the production process. By checking the product before shipment, the company works to reduce potential quality issues and maintain consistent production standards.
