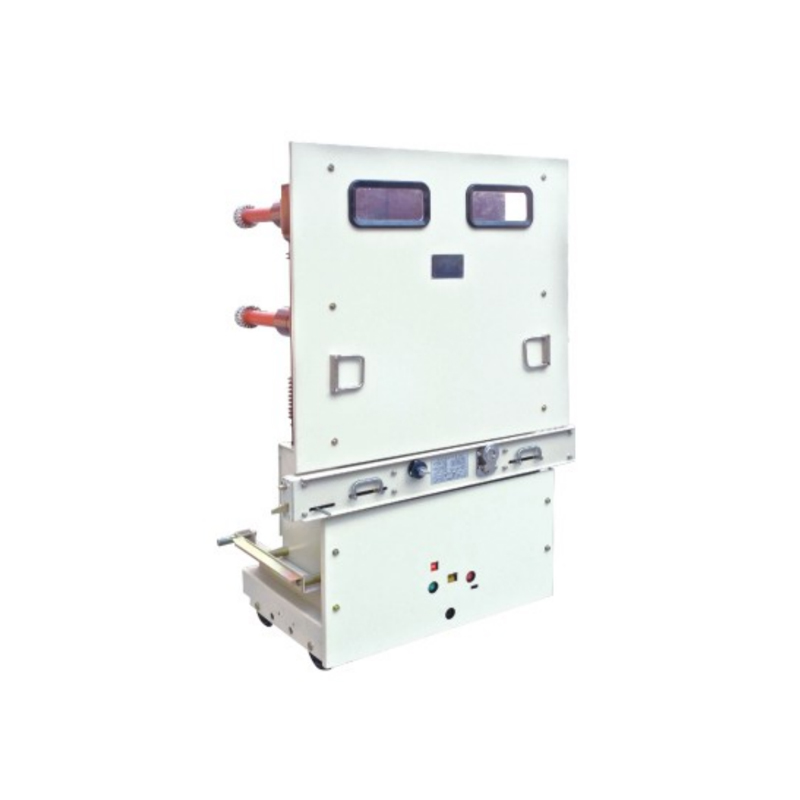

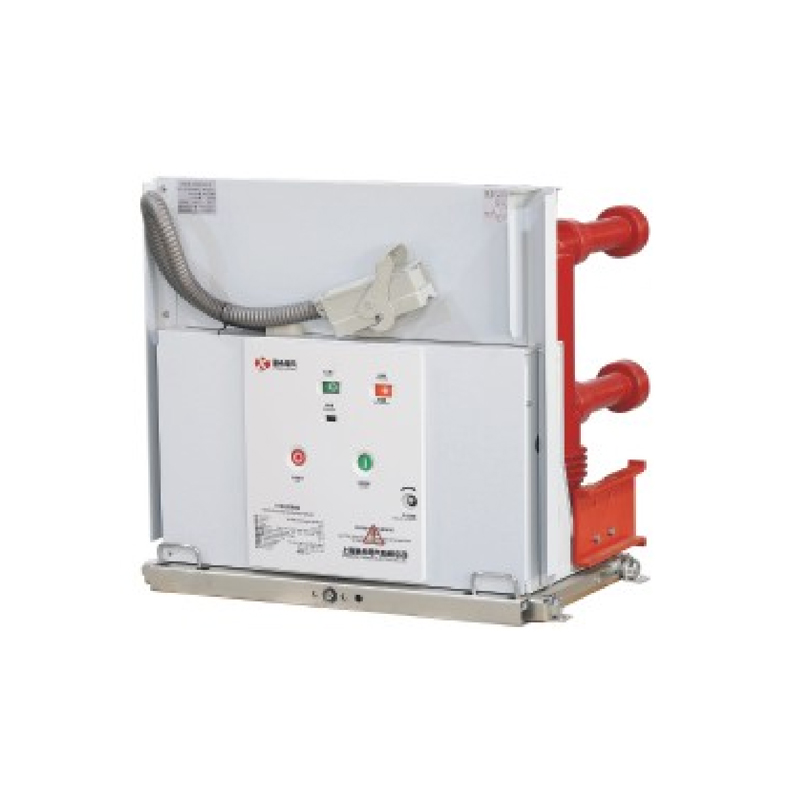

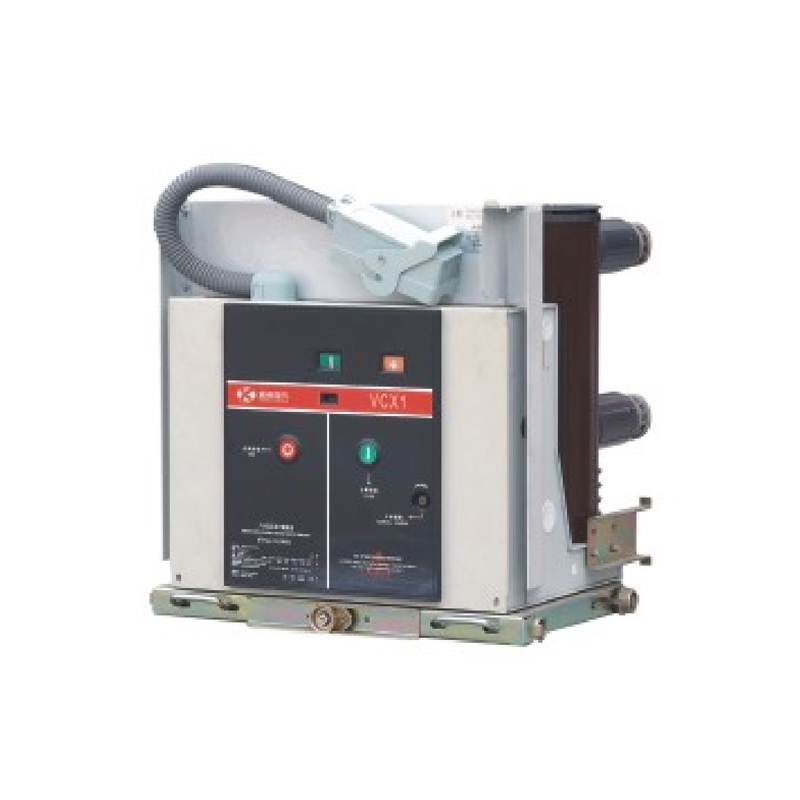

The VXC1-12 series indoor trolley-mounted high-voltage vacuum circuit breaker is a three-phase AC 50Hz, 12kV rated indoor switchgear. It is suitable for control and protection in industrial and mining enterprises, power plants, substations, and electrical facilities, and is ideal for frequent operation. The operating mechanism is integrated with the circuit breaker body, allowing it to be used as a fixed installation unit or as a trolley unit with a dedicated propulsion mechanism. The main circuit utilizes an integrally sealed column, resulting in a compact, highly reliable, and maintenance-free circuit breaker. It is compatible with center-mounted trolley-mounted switchgear such as the KYN28A-12 (GZS), and can also be used with XGN series fixed switchgear in fixed configuration.

Normal Operating Environment
Ambient temperature: not exceeding 40°C, not below -10°C (storage and transportation at -30°C permitted).
Altitude: not exceeding 1000m. (If higher altitude is required, the rated insulation level will increase accordingly.)
Relative humidity: Daily average not exceeding 95%, saturated vapor pressure: Daily average not exceeding 2.2 × 10-11 MPa, monthly average not exceeding 1.8 × 10-11 MPa.
Seismic intensity: Not exceeding magnitude 8.
A location free from fire, explosion, severe contamination, chemical corrosion, or severe vibration.

The VZF-12 center-mounted, sealed vacuum load switch-fuse combination (hereinafter referred to as the vacuum switch) is a next-generation vacuum switchgear developed based on a unique design concept and market demand. It is widely used in indoor armored air-insulated switchgear and complies with standards such as GB3804-2004 and GB16926-1997.

Under normal operating conditions, within the technical parameters of the vacuum switch, the VZF-12 center-mounted, sealed vacuum load switch-fuse combination ensures safe and reliable operation in power grids of the corresponding voltage level.

Normal Operating Environment
1. Ambient Temperature: +40°C to -25°C.
2. Ambient Humidity: Daily Average Relative Humidity: ≤95%, Monthly Average Relative Humidity: ≤90%.
3. Daily Average Saturated Vapor Pressure: ≤2.2 x 10-3 MPa.
4. Monthly Average Saturated Vapor Pressure: ≤1.8 x 10-3 MPa.
5. Altitude: Not exceeding 1500m
6. Earthquake intensity: Not exceeding 8 degrees.
7. Applicable location: No dripping water, no risk of stagnation or explosion, no chemically corrosive gases, and no severe vibration.
8. If the product's operating environment exceeds the above requirements, the user can negotiate with our company to determine the appropriate location.

The VZD 12kV three-position vacuum circuit breaker integrates isolation, grounding, and interrupting functions, utilizes vacuum arc extinguishing technology, and features a compact design and easy operation. It supports both electric and manual control, features mechanical interlock protection, and is suitable for fixed or removable installation. Its high interrupting capacity, long life, and maintenance-free design make it suitable for substations, industrial and mining applications, and smart grids, enhancing power distribution reliability.

Product Technical Features
1. Compact/Flexible:
The air-based insulation method meets the electrical clearance and partial discharge standards of the power industry's technical specifications.
The compact cabinet dimensions (standard cabinet dimensions: 480*1000*1800mm (width x depth x height)) make the complete power distribution system extremely compact, saving space on expensive urban construction land.
Flexible busbar configurations and expansion options facilitate integration with other cabinet types.
2. Integrated/Encapsulated:
The integrated circuit breaker combination design integrates a disconnector, circuit breaker, earthing switch, and live sensor. The modular design provides simple, reliable interlocking and easy maintenance.
3. Visualization/High Efficiency:
The visual disconnector breakout design, rapid delivery, and overall modular design make assembly of the complete electrical system quick and easy.
The integrated structure allows all types of closing requirements to be implemented within a single unit, reducing the risk of locking failures caused by assembly process issues in the complete electrical system. 4. Stability/Durability:
Optional spring permanent magnet mechanism provides long mechanical life. The sealed vacuum interrupter provides dustproof and high insulation performance.

Product Technical Parameters
Rated voltage: 12kV
1-minute power frequency withstand voltage: 42kV
Lightning impulse withstand voltage: 75/85kV
Rated current: 630- 1250A (feeder)
Rated frequency: 50/60Hz
Rated short-circuit breaking current: 25kA/31.5kA
Rated short-time withstand current: 25kA/31.5kA
Rated peak withstand current: 50kA/63kA
Rated short-circuit current breaking cycles: 30
Mechanical life: 10,000 cycles (circuit breaker)
Power frequency withstand voltage for auxiliary circuits: 2000V
630-1250A (incoming line)
3,000 cycles (disconnector/earthing switch)
100,000 cycles (circuit breaker)

Applicable fixed switchgear structure:
The cabinet is constructed of 2.0mm aluminum-zinc coated steel sheets bent and assembled for high strength, light weight, and excellent corrosion resistance. It is divided into independent low-voltage compartments, busbar compartments, switch compartments, and cable compartments.

The FN7-12 indoor high-voltage load switch and fuse combination is a gas-generating indoor high-voltage load switch suitable for three-phase AC power systems with a 50 Hz frequency and a rated voltage of 12 kV. It is used for interrupting load current and closing short-circuit currents.

Normal Operating Conditions:
Ambient Air Temperature: Upper Limit: +40°C; Lower Limit: -10°C in general areas, -25°C in cold regions;
Altitude: 1000 m or less above sea level.
Relative Humidity: Daily average not exceeding 95%, monthly average not exceeding 90%;
Ambient air must be free from significant contamination by corrosive or combustible gases, water vapor, or other pollutants;
No frequent severe vibration.

The ZW32 12KV Manual and Electric Outdoor High Voltage Vacuum Circuit Breaker, is a robust and reliable switchgear device designed for use in 10kV outdoor distribution networks. It integrates both manual and electric operation modes, offering flexibility for local and remote control applications. The product features a three-phase design with color-coded operating levers for safe and intuitive identification, making maintenance and operation easier.

Its core vacuum interrupter technology ensures excellent arc extinguishing performance, high breaking capacity, and minimal maintenance needs. The insulating bushings are designed to withstand harsh outdoor environments such as rain, humidity, dust, and UV exposure, ensuring long-term stable operation.

This circuit breaker is widely used in urban and rural power grids, industrial and mining enterprises, and substations. It is particularly suitable for frequent operation scenarios and plays a critical role in system protection, load switching, fault isolation, and automatic reclosing. Its ability to be integrated with intelligent terminals allows for remote monitoring and control, making it an ideal solution for modern smart grid infrastructure. The ZW32 12KV unit enhances both operational safety and grid reliability, supporting efficient and secure power distribution.

12kV outdoor high-voltage disconnectors and vacuum circuit breakers are widely used in medium-voltage power distribution systems, primarily providing control, isolation, and protection. They are particularly suitable for substations, industrial and mining enterprises, and rural power grid upgrades.

Product Advantages:
High insulation performance: Utilizes high-voltage composite or ceramic insulators, suitable for harsh outdoor environments.
Safety isolation: Features a clearly visible disconnection to ensure safe maintenance.
Modular structure: Easy installation and easy integration with vacuum circuit breakers, lightning arresters, and other devices.
Multiple operation modes: Supports manual, electric, and remote control to meet the needs of smart grid access.
Low maintenance: Vacuum arc extinguishing design ensures long mechanical life and is suitable for frequent operation.

Typical Applications:
Rural distribution line segmentation; Industrial user line isolation; Boundary switches in urban distribution automation systems; Small substation inlet and outlet protection equipment.

Our ZW32 series 12kV outdoor high-voltage disconnectors and vacuum circuit breakers combine high-reliability operation with safe isolation, making them essential equipment for modern power distribution systems, helping to achieve efficient, safe, and intelligent power grid operation.

The PT/GL/JL 12kV High-Voltage Isolation and Metering Cart is a device designed specifically for power systems, primarily used for isolating and metering high-voltage circuits. Its compact design makes it easy to install and maintain. Constructed of high-strength materials, it ensures safety and durability in high-voltage environments. Its main components include an isolating switch, a metering device, and a trolley mechanism.

The isolating switch disconnects the circuit when necessary, ensuring the safety of maintenance personnel; the metering device accurately measures current and voltage, helping to monitor the operating status of the power system. The trolley mechanism allows the device to be easily withdrawn or pushed into the switchgear for easy operation and maintenance.

The overall design complies with relevant safety standards and is suitable for a variety of industrial and commercial power systems. Its reliability and efficiency make it an indispensable component of power systems.

The CHW1-2000~6300 (DW45)/CHW1-1600-3P/4P-200A~1600A series of intelligent universal circuit breakers (hereinafter referred to as circuit breakers) are available in both drawer-type and fixed-type versions. They are suitable for use in power distribution networks operating at 50/60Hz AC, with a rated operating voltage of 400V to 690V and a rated operating current of 400 to 6300A. They distribute power and protect circuits and power equipment from overloads, undervoltages, short circuits, ground faults, and other hazards.

Application and Scope of Use:
The CHW series intelligent universal circuit breakers (hereinafter referred to as circuit breakers) are suitable for use in power distribution networks operating at 50/60Hz AC, with a rated operating voltage of 400V to 690V and a rated operating current of 400 to 6300A. They distribute power and protect circuits and power equipment from overloads, undervoltages, short circuits, ground faults, and other hazards. The circuit breakers utilize intelligent controllers with precise selective protection and multifunctionality, offering comprehensive protection features. They are particularly suitable for distribution networks that require improved power supply reliability and prevent unnecessary power outages. The 2H and 3H intelligent controllers feature a communication interface for easy connection to the fieldbus, enabling remote sensing, remote adjustment, remote control, and remote communication, meeting the requirements of automated control. A leakage current transformer and corresponding intelligent controller provide leakage protection. Circuit breakers with a rated operating current of 1000A or less can also be used in 50Hz, 400V AC networks to protect motors from overload, short circuit, undervoltage, and ground faults. Under normal conditions, they can also be used for infrequent motor starting.

Circuit breakers have an isolation function, symbolized by "/*."

The circuit breaker complies with the following standards:
IEC 60947-1 and GB/T 14048.1 Low-voltage switchgear and controlgear - General principles
IEC 60947-2 and GB/T 14048.2 Low-voltage switchgear and controlgear - Low-voltage circuit breakers
IEC 60947-4-1 and GB/T 14048.4 Low-voltage switchgear and controlgear - Electromechanical contactors and motor starters
GB/T 2421.1 Overview and Guidelines for Environmental Testing of Electrical and Electronic Products
GB/T 14597 Climatic and Environmental Conditions at Different Altitudes for Electrical Products

Installation Environment Requirements:
Ambient Temperature: -5°C to +40°C, with a 24-hour average temperature not exceeding +35°C. Derating is required for ambient temperatures above +40°C. Refer to the user manual for the derating factor.
Relative Humidity: At a maximum temperature of +40°C, the relative humidity should not exceed 50%. Higher relative humidity is permitted at lower temperatures, for example, 90% at 20°C.
Altitude: ≤2000m. For altitudes exceeding 2000m, refer to the user manual for derating factors.
Installation Requirements: Install the circuit breaker at a vertical inclination of ≤5°.
Pollution Degree: Level 3
Use Category: B
Applicable Electromagnetic Environment: B
Protection Level: When the circuit breaker is installed in a cabinet with a door frame, the protection level reaches IP40.
The circuit breaker should be installed in a dry environment free of conductive dust, corrosive gases, and explosive media.

Product Features
Compliant Standards
·GB/T14048.1 General
·GB/T14048.2 Circuit Breakers
·IEC 60947-1 General
·IEC 60947-2 Circuit Breakers

Ambient Temperature
·This series can operate for extended periods within normal ambient and operating temperatures between -5°C and 40°C.
·For operating temperatures exceeding 40°C (over 60°C for motor protection), please refer to the temperature derating requirements or contact us. Storage temperature: -20°C to 70°C

Altitude
The normal operating altitude is not to exceed 2000m.
If installation is required at an altitude exceeding 2000m, refer to the altitude derating factor table.
Pollution Degree
This product operates in pollution degree 3 environments (industrial environments) as defined in IEC 60947-1 and 60664-1.
Humidity

Normal operation requires the following:
At an ambient air temperature of +40°C, the relative humidity must not exceed 50%. If the temperature is lower, operation at higher relative humidity is permitted.
The average relative humidity in the wettest month is 90%.
The impact of condensation on the product surface on product performance must be considered.
Protection Degree
The circuit breaker body has an IP protection rating of IP20.
Circuit breakers installed in switchgear:
Circuit breakers with toggle handles: IP40
Circuit breakers with electric operating mechanisms: IP40

The DW15 series low-voltage universal electric circuit breakers are high-performance electrical devices widely used in industrial and commercial applications. Their primary function is to protect circuits from faults such as overloads and short circuits, ensuring the safe operation of power systems.

These circuit breakers feature intelligent control capabilities, enabling remote control and automated management through electric operation. Their compact design facilitates installation in distribution cabinets, saving space. Furthermore, they offer excellent breaking capacity, enabling rapid power interruption in the event of a fault, minimizing equipment damage and outage duration.

The DW15 series circuit breakers also offer a variety of protection functions, such as overcurrent and undervoltage protection, allowing for flexible configuration to meet diverse application requirements. Their reliability and stability make them an indispensable component in low-voltage power distribution systems.

The CHM1 series enclosure-type circuit breaker (hereinafter referred to as the circuit breaker) is a new type of circuit breaker developed using our company's manufacturing technology. This high-performance low-voltage protection device features a high-quality engineering plastic housing and a modular design. It features a compact structure, high breaking capacity, and precise protection. It provides comprehensive protection against overload and short circuits, and is available with a wide range of optional accessories. It is widely used in building power distribution, industrial control, and motor protection.

Product Features:
Standards Compliant
GB/T14048.1 General
GB/T14048.2 Circuit Breakers
IEC 60947-1 General
IEC 60947-2 Circuit Breakers

Ambient Temperature
The series can operate for extended periods within normal ambient and operating temperatures between -5°C and 40°C.
For operating temperatures exceeding 40°C (over 60°C for motor protection), derating should be applied or contact us.
Storage temperature range: -20°C to 70°C.

Altitude
·The normal operating installation altitude must not exceed 2000m.
·If installation is required at an altitude exceeding 2000m, changes in dielectric strength and decreases in air temperature must be considered. Refer to the altitude derating factor table.

Protection Degree
·The circuit breaker body has an IP protection rating of IP20.
·Circuit breakers installed in switchgear:
Circuit breakers with toggle handles: IP40
Circuit breakers with electric operating mechanisms: IP40

Pollution Degree
The product operates in pollution degree 3 environments (industrial environments) as defined in IEC 60947-1 and 60664-1.

Humidity
During normal operation, the product must meet the following requirements:
·At an ambient air temperature of +40°C, the relative humidity must not exceed 50%. Higher relative humidity conditions are acceptable at lower temperatures.
·The average relative humidity in the wettest month is 90%.
·The impact of condensation on the product surface on product performance must be considered.

Reliable contact indication with isolation function
· All molded case circuit breakers in this series comply with the isolation requirements defined in IEC standard 60947-2.
· The isolation position corresponds to the O (OFF) position.
· The operating handle indicates the "OFF" position only when the contacts are actually open.
· Rotating the handle or electric operating mechanism does not alter the reliability of the contact indication system. After testing, the Isolation function must ensure:
· Mechanical reliability of the contact indication system
· No leakage current
· A certain overvoltage withstand capability between the input and output terminals.

The CHM1LE series molded case residual current circuit breaker is a high-performance electrical protection device widely used in residential, commercial, and industrial environments.

Key Selling Points:
- Safety: Rapid leakage protection reduces the risk of electric shock.
- High Reliability: Made of durable materials, stable operation, and low failure rate.
- Easy Installation and Maintenance: Compact design facilitates integration and routine maintenance.
- Multifunctional Protection: Integrated overload and short-circuit protection provides comprehensive electrical safety.
- Durability: Impact-resistant plastic housing, corrosion-resistant, and long life.
- Energy Saving and Environmental Protection: Optimized design reduces energy consumption.
- Wide Adaptability: Suitable for various voltage and current environments.
- Easy Operation: User-friendly interface, easy to understand.
- Certification Guarantee: Strict certification guarantees safety and quality.

The CHM1LE series molded case residual current circuit breaker, with its excellent performance and wide application, is an ideal choice for electrical safety.

The CHM1E series electronic molded case circuit breakers (hereinafter referred to as circuit breakers) are suitable for AC 50Hz/60Hz operation. They have a rated insulation voltage of 800V, a rated working voltage of 690V and below, and a rated working current of 16 to 800A. They are designed for non-frequent switching and non-frequent motor starting in circuits with overload, short-circuit, and undervoltage protection, effectively protecting circuits and electrical equipment from damage. They are suitable for protecting industrial power distribution, building power systems, and various control equipment.

Product Features
Compliant Standards
·GB/T14048.1 General
·GB/T14048.2 Circuit Breakers
·IEC 60947-1 General
·IEC 60947-2 Circuit Breakers

Ambient Temperature
·This series of products can operate for extended periods within normal ambient and operating temperatures between -5°C and 40°C.
·For operating temperatures exceeding 40°C (over 60°C for motor protection), please refer to the temperature derating requirements or contact us. Storage temperature: -20°C to 70°C.

Altitude
The normal operating altitude for this product must not exceed 2000m.
If installation is required at an altitude exceeding 2000m, changes in dielectric strength and air temperature drop must be taken into consideration. Refer to the altitude derating factor table for details.

Protection Degree
The circuit breaker body has an IP protection rating of IP20.
Circuit breakers installed in switchgear:
Circuit breakers with toggle handles: IP40
Circuit breakers with electric operating mechanisms: IP40

Pollution Degree
This product operates in pollution degree 3 environments (industrial environments) as defined in IEC 60947-1 and 60664-1.

Humidity
For normal operation, the following must be met:
At an ambient air temperature of +40°C, the relative humidity must not exceed 50%. Higher relative humidity conditions are permitted at lower temperatures.
The average relative humidity in the wettest month is 90%. The impact of condensation on the product surface on product performance must be considered.

Reliable contact indication with isolation function
All molded case circuit breakers in this series comply with the isolation defined in IEC standard 60947-2.
The isolation position corresponds to the O (OFF) position.
The operating handle will indicate the "OFF" position only when the contacts are truly open.
Rotating the handle or electric operating mechanism will not change the reliability of the contact indication system. This has been tested.
The isolation function must be guaranteed.
The mechanical reliability of the contact indication system.
No leakage current.
A certain overvoltage withstand capability between the input and output terminals.
